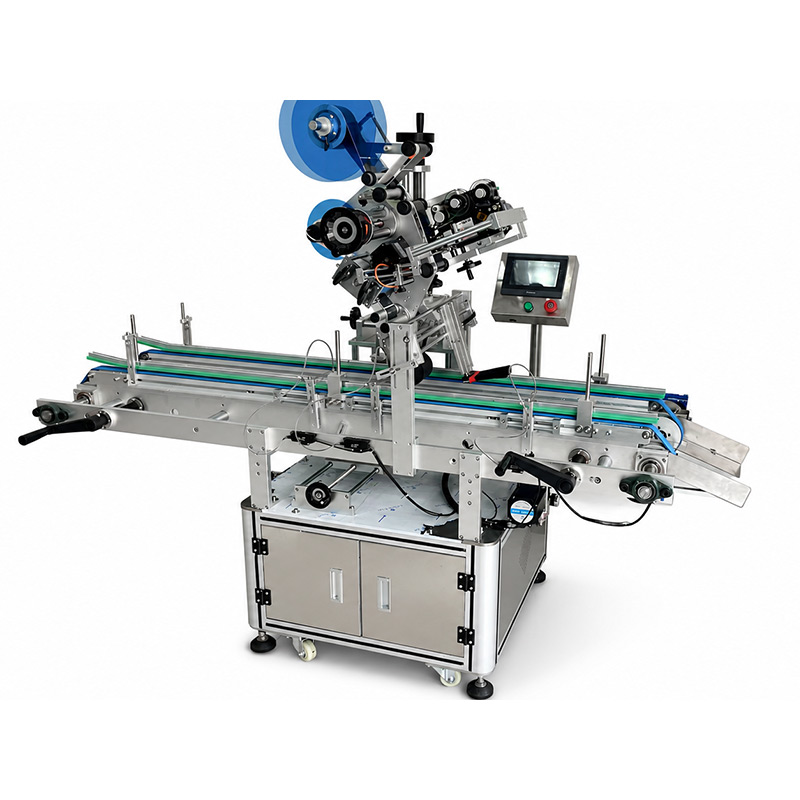

WINNEO 3/4-Side Wrap-Around Labeling Machine for Food Containers

Product Introduction
Applies one label continuously across the top and opposite sides of boxes or trays, providing consistent label positioning, smooth folding and reliable performance for continuous production.
● One Label for 3/4-Side Wrap-Around Labeling
● Feeding, Product Detection and Label Application
● Adjustable for Different Box and Tray Sizes
● Designed for Stable Continuous Production
Key Specifications
±1.0 mm
Labeling Accuracy
15–30 pcs/min
Labeling Speed
Ø76 mm
Label Inner Diameter
≤ Ø280 mm
Label Outer Diameter
Applicable Product Size: According to specific product dimensions
Applicable Label Size: According to specific label dimensions
* Labeling accuracy excludes errors caused by the product and label. Actual labeling speed varies depending on product size.
Get A Free Quote
Talk With Expert

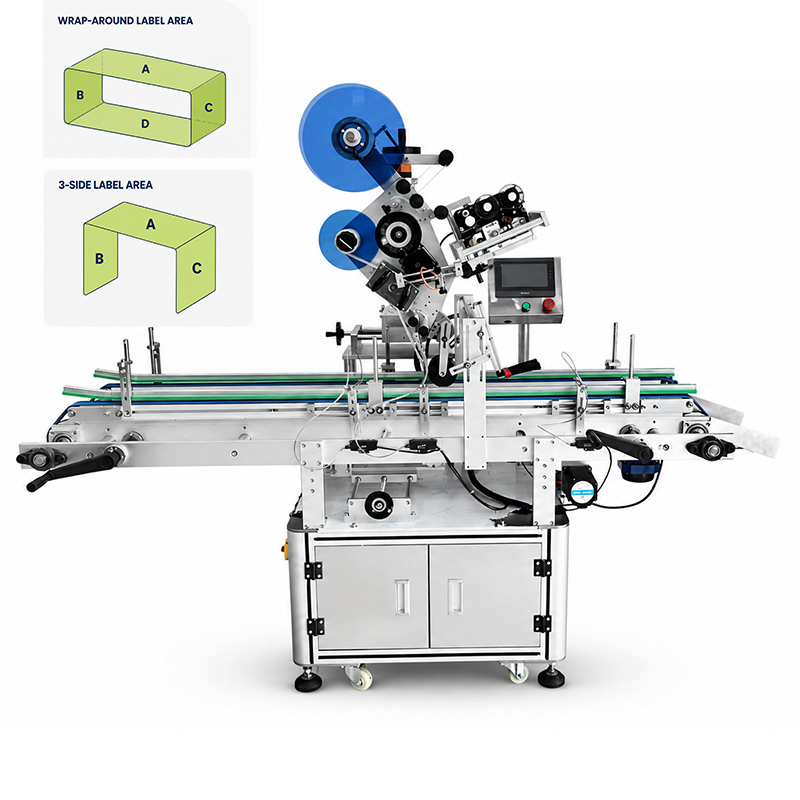

ONE LABEL · MULTI-SIDE LABELING
Three- or Four-Side Labeling in a Single Process
Instead of applying separate labels to different surfaces, this machine applies one continuous label to cover the top and two opposite sides of the product.
Depending on the label design and packaging structure, this labeling method can be used for product identification, branding, product information display, and package sealing.

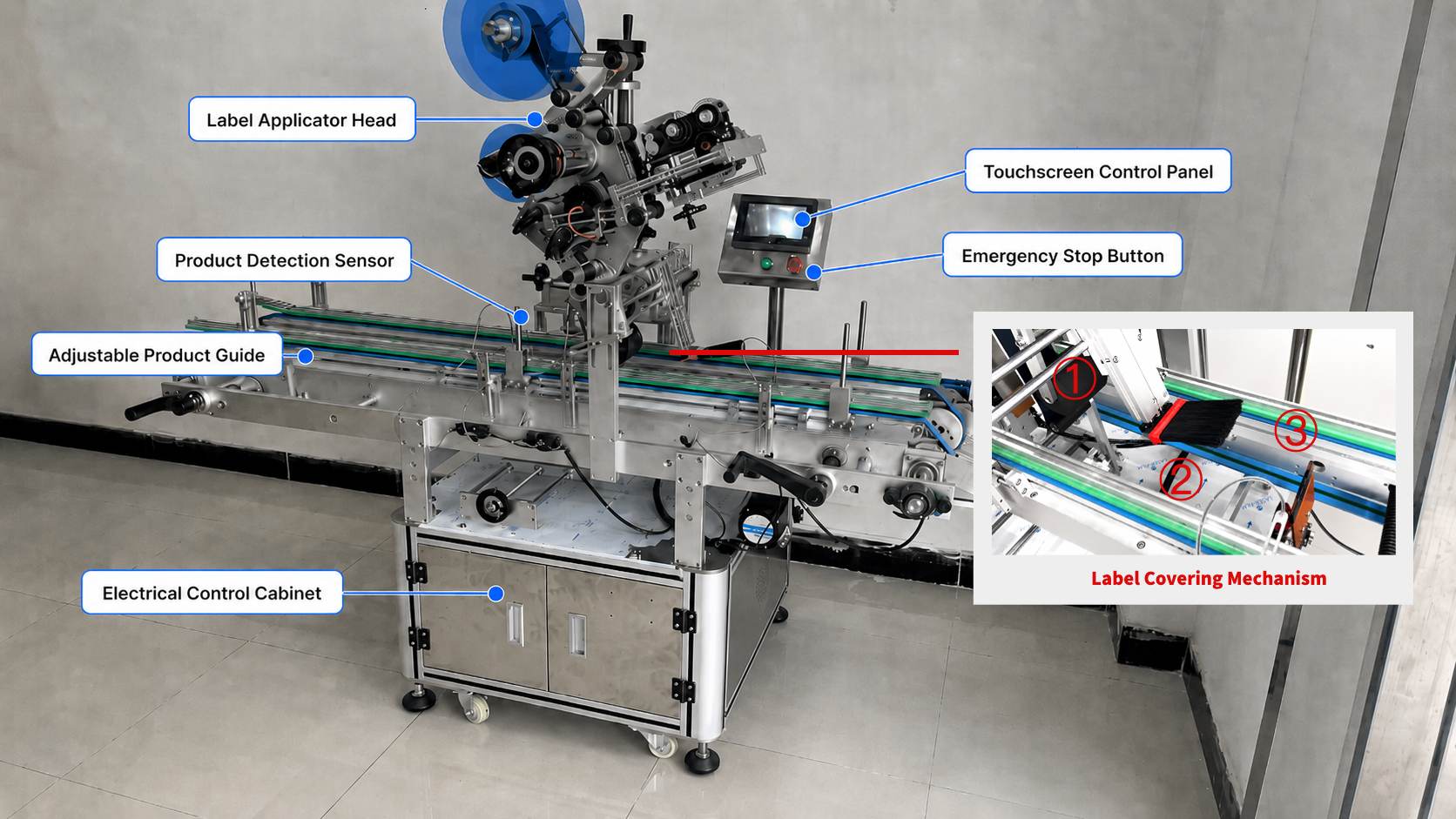

Machine Structure
bag labeling machine
STEP 01
Product Feeding
The product enters the conveying line.
STEP 02
Product Positioning
The guiding mechanism positions the product accurately during conveying.
STEP 03
Product Detection
The sensor detects the arrival of the product.
STEP 04
Top Label Application
The label applicator head applies the label to the top surface of the product.
STEP 05

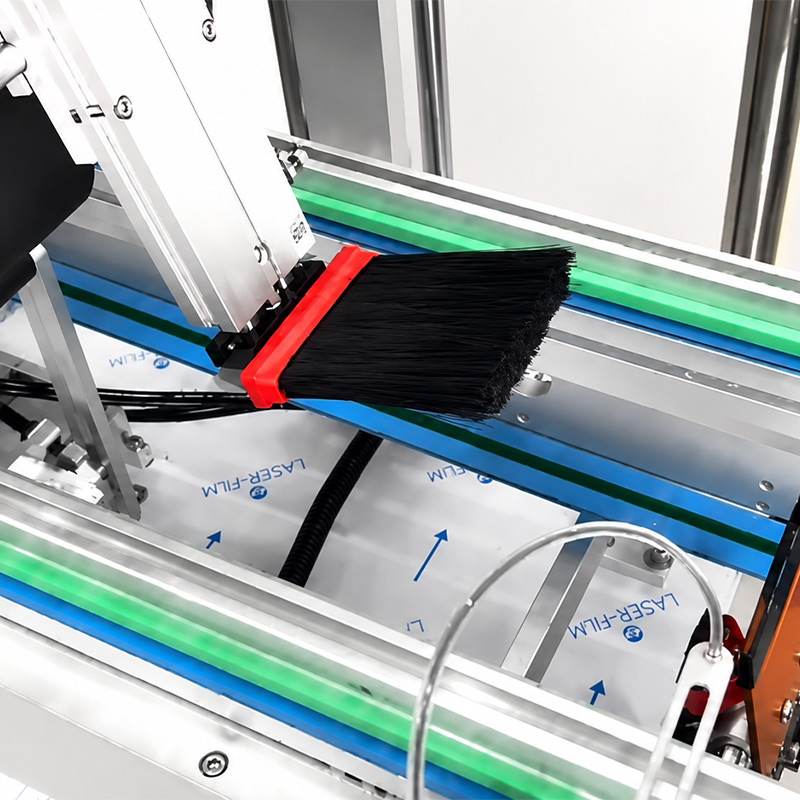

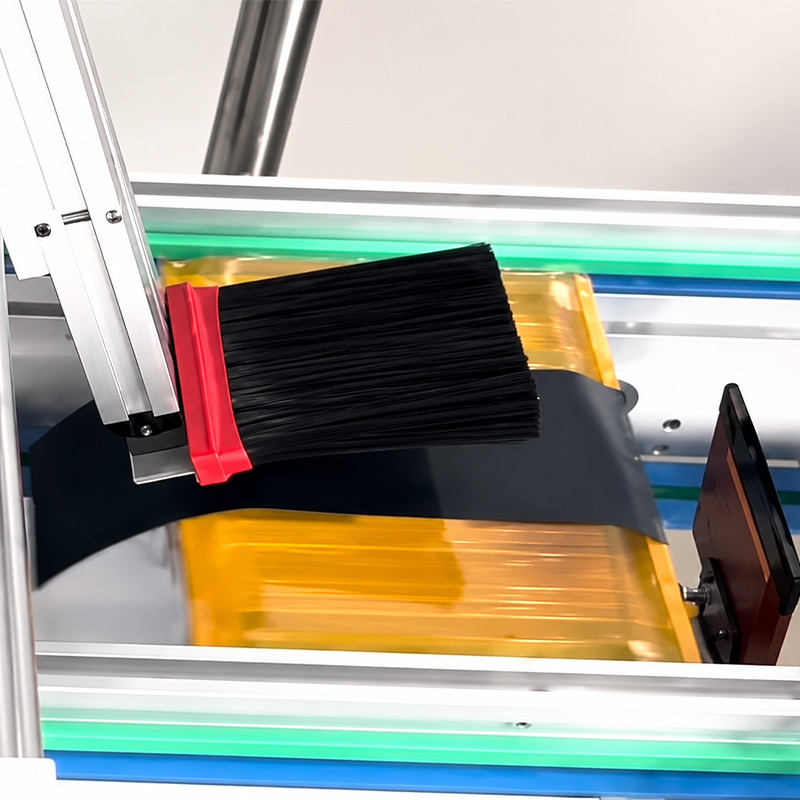

Two-Side Label Folding
The folding mechanism folds both sides of the label onto the two side surfaces of the product.
STEP 06
Label Pressing
The pressing mechanism firmly presses and smooths the label for a neat finish.
STEP 07
Finished Product Output
The labeled product is automatically discharged.

Technical Parameters
Labeling Accuracy +1.0mm (excluding product and label errors)
Labeling Speed 15-30 pieces/minute (related to product size)
Applicable Product Size Based on specific product size
Applicable Label Size Based on specific label size
Applicable Label Inner Diameter 76mm
Applicable Label Outer Diameter 280mm
Voltage 220V

Application
WINNEO 3/4-Side Wrap-Around Labeling Application
Multi-Side Wrap-Around Labeling for Packaging
Widely used in the food, personal care, and other industries, it can display information on the top and barcodes or other secondary information on both sides with a wraparound label design.
Suitable for transparent lid packaging, it enhances the product's shelf appeal and overall presentation.
Food Packaging
Personal Care
Transparent Lid Packaging
Boxes & Trays

Manual Labeling vs Automatic Labeling
Contrast Dimensions Manual Labeling / Single-Sided Labeling Machine This Product (Three-Sided Integrated Labeling Machine)
Efficiency Low efficiency, requiring multiple operations High efficiency, one-time labeling
Labor Cost High Significantly reduced labor costs
Labeling Accuracy Dependent on manual operation, resulting in larger errors Sensor positioning with high accuracy and minimal error
Rework Rate Higher Low

Related Product Recommendations
If you cannot find the right machine, please contact WINNEO; we will help you find or customize the best solution for your needs.

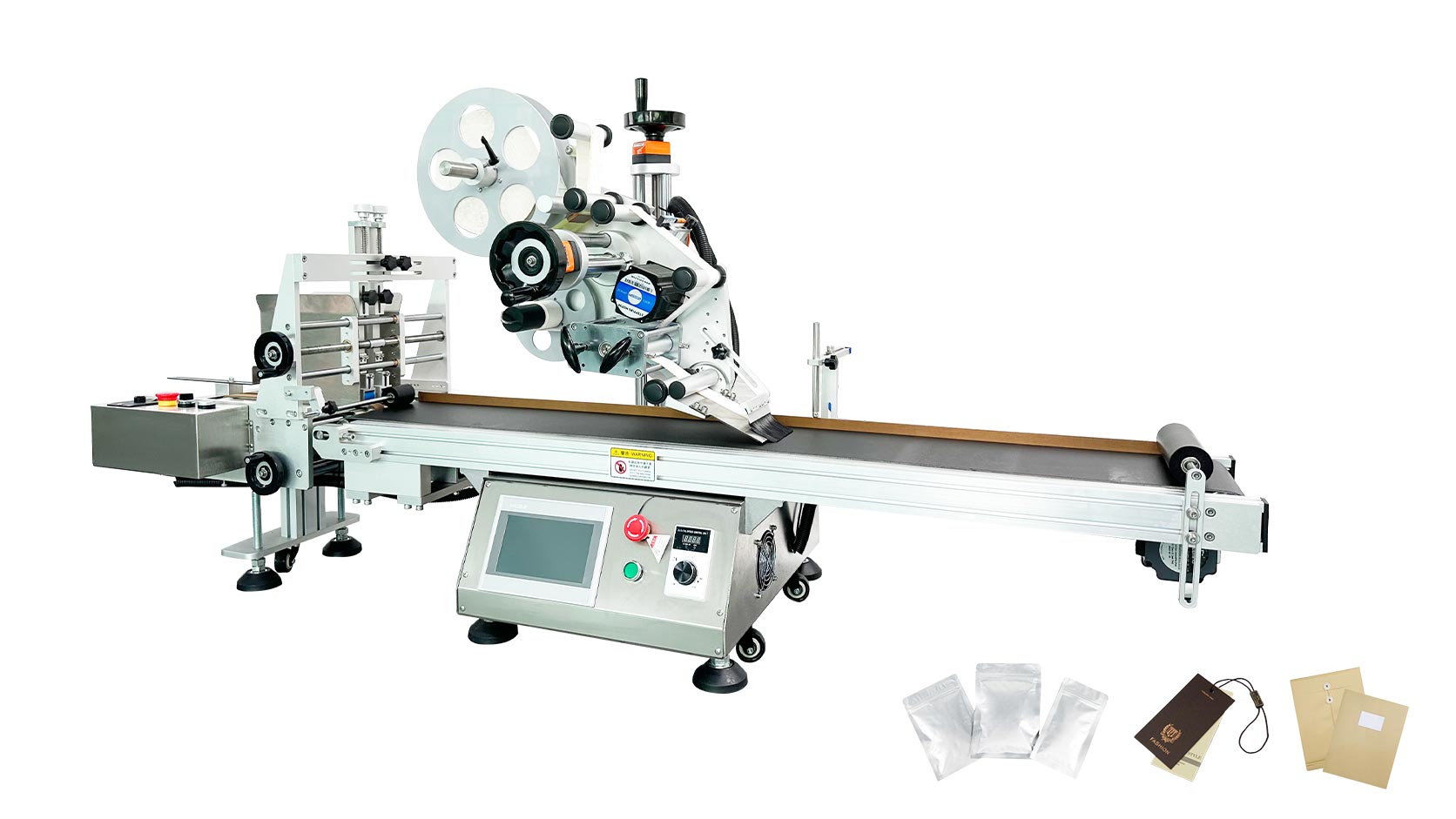

Fully Automatic Flat Labeling Machine
Suitable for products that require labeling on a flat surface rather than continuous multi-side wrap-around labeling.
Other Box Labeling Machine Video
Explore other box labeling methods and machine configurations for different package structures and labeling positions.

Customer Feedback
Labeling Machine

FAQ
1. Core Labeling Principles
Q1. What is the working mode of single-label three-side labeling? How is it different from traditional multi-label labeling systems?
The WINNEO machine adopts one continuous integrated label to cover the top surface and two opposite sides of product within a single process. Traditional equipment needs three separate labels for the top and two sides with multiple separate labeling stations, while our machine eliminates repeated labeling processes.
Q2. Will the continuous label break or shift during the wrapping process around the top and two sides?
The machine is equipped with a precise label feeding and synchronous pressing system. The integrated label finishes three-side attachment in a single process. No label breakage or position deviation occurs when using qualified standard label materials.
2. Multiple Functions of a Single Integrated Label
Q1. Apart from printing logos and product information, can this integrated label also provide a packaging sealing function?
The label tightly applies to the top and two side walls of packages. Its adhesive layer can seal package openings to provide additional sealing and tamper-evident protection. Depending on label design and packaging structure, one label can achieve product identification, brand presentation, information display, and package sealing simultaneously.
Q2. Will the dual requirements of information display and sealing limit the label layout design?
The machine only performs the labeling process without any restrictions on your label graphics, text content, QR codes, or sealing area layout. You can freely customize label designs according to your package size and opening structure.
3. Production Efficiency & Consumable Cost
Q1. What cost and labor advantages can one-process three-side labeling bring to production lines?
Only one labeling station is required instead of multiple labeling heads and stations, which reduces equipment procurement costs and manual operation costs, simplifies the packaging workflow and improves the overall operating speed of your production line.
Q2. Can a continuous single label reduce consumable costs compared with three individual labels?
You only need one customized continuous label instead of three independent labels for the top and sides. It reduces extra costs for separate plate making, printing and inventory management, as well as label waste generated during multiple labeling processes.
4. Package Applicability
Q1. What types of packages are suitable for this one-label three-side labeling technology?
Regular square and rectangular boxes with a flat top and a pair of parallel opposite sides are the most applicable packages. The labeling covering stroke can be adjusted to match your actual packaging structure.
Q2. Can this labeling solution be used for curved, contoured, or irregularly shaped packaging?
This process is designed for standard rectangular boxes; it cannot achieve complete three-sided wrapping on packages with irregular shapes, curved surfaces, or non-standard forms.
5. Labeling Finished Quality
Q1. Are wrinkles or edge warping common on side labels during integrated wrapping labeling?
The machine is equipped with synchronous and uniform pressing components. The label wraps around two sides at a constant speed with stable pressure after being applied to the top surface. Wrinkles, edge warping, and glue peeling defects can be effectively avoided when using standard labels on smooth package surfaces.
