In many industries, labeling a flat surface is relatively simple.

But when it comes to Round Bottle Caps, achieving a perfectly centered label at high speed becomes a real challenge.

A small deviation is highly visible on circular surfaces. Even a slight offset can affect the overall appearance of the package,

reduce product quality perception, and increase rework costs.

This is exactly the challenge our customer faced.

The Challenge: High-Speed Centered Labeling on Round Caps

For products such as:

• Food & beverage bottles

• Healthcare bottles
• Honey jars
• Cosmetic containers
• Sauce containers

Customers often require the label to be positioned precisely at the center of the cap.

However, during the labeling process:

• Round products can easily rotate or shift during transportation
• Manual positioning causes inconsistent results
• Traditional flat labeling machines struggle with high-precision cap positioning

The result?

❌ Unstable labeling position

❌ Increased defective rate

❌ Extra labor for re-labeling

❌ Higher production costs

The Solution: Automatic Clamping Positioning Technology

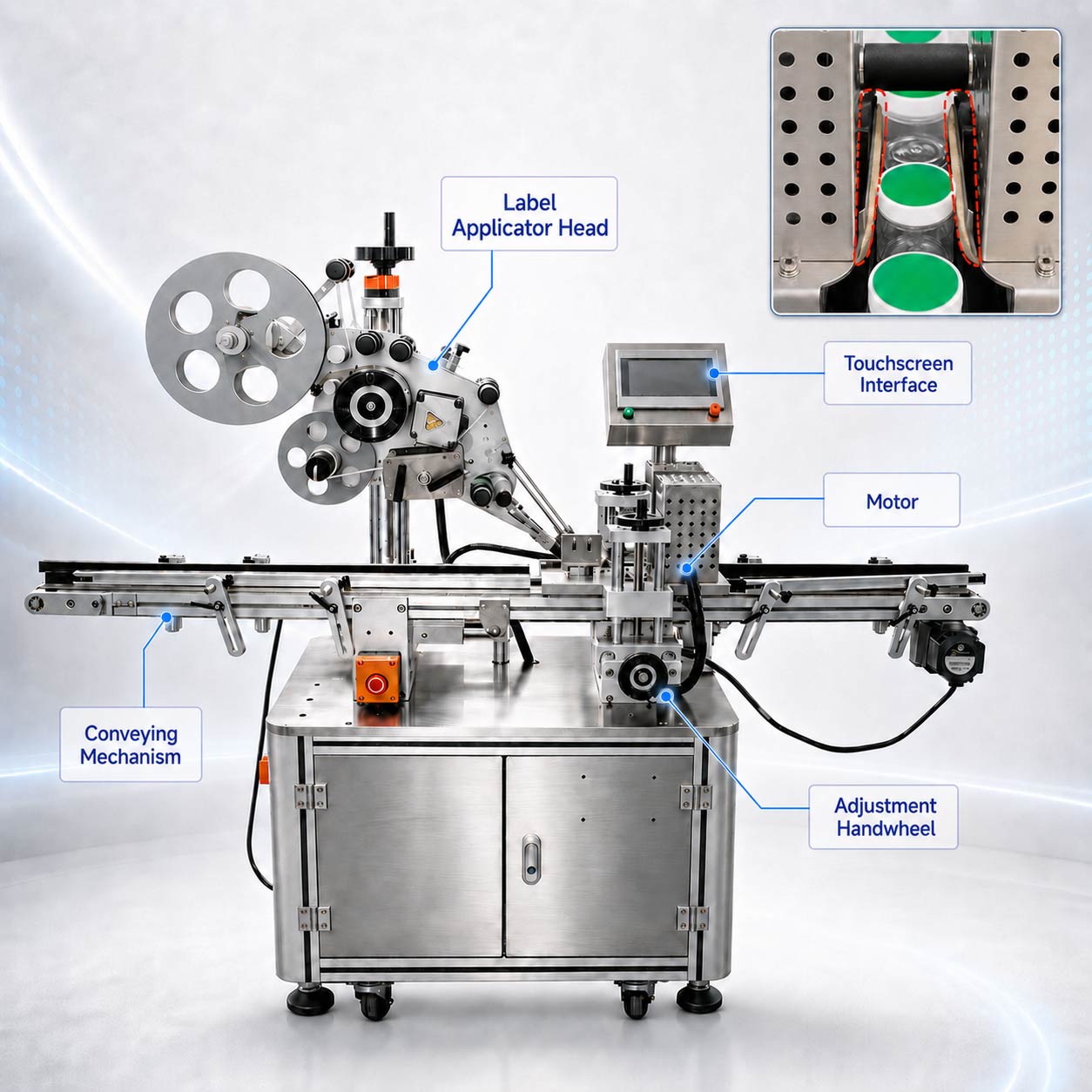

To solve this problem, we developed an Automatic Flat Clamping Labeling Machine equipped with a dedicated clamping mechanism.

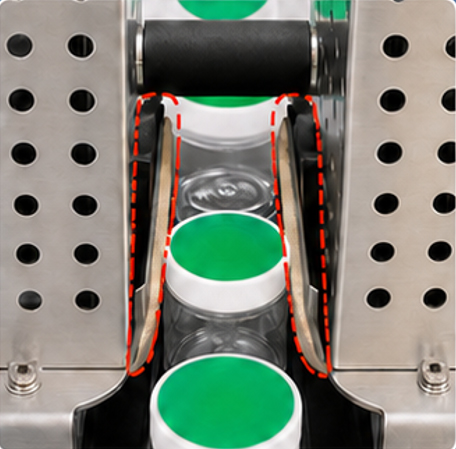

The clamping system works like a positioning guide:

✅ Stabilizes the product during transportation
✅ Prevents bottle movement during labeling
✅ Ensures accurate center positioning
✅ Improves consistency in mass production

By combining precise control systems with mechanical positioning, the machine achieves stable and repeatable labeling performance.

Technical Configuration

To ensure reliable operation, the machine integrates high-quality industrial components:

⚙ Control System
Panasonic PLC

⚙ Product Detection Sensor
Panasonic SUNX sensor + Precise sensor system

⚙ Label Traction & Drive System
Leadshine stepper motor system

⚙ Clamping & Drive System
Leadshine stepper motor system

Performance Improvement

After upgrading to the automatic clamping labeling solution:

Labeling Accuracy

±1mm

Labeling Speed

40–80 pcs/min

Product Quality

High yield rate with stable labeling consistency

Operation

Easy adjustment and convenient setup

Application Flexibility

After adjustment, the machine can handle different products within the suitable size range, including:

·Round bottles

·Flat products

·Boxes

·Containers

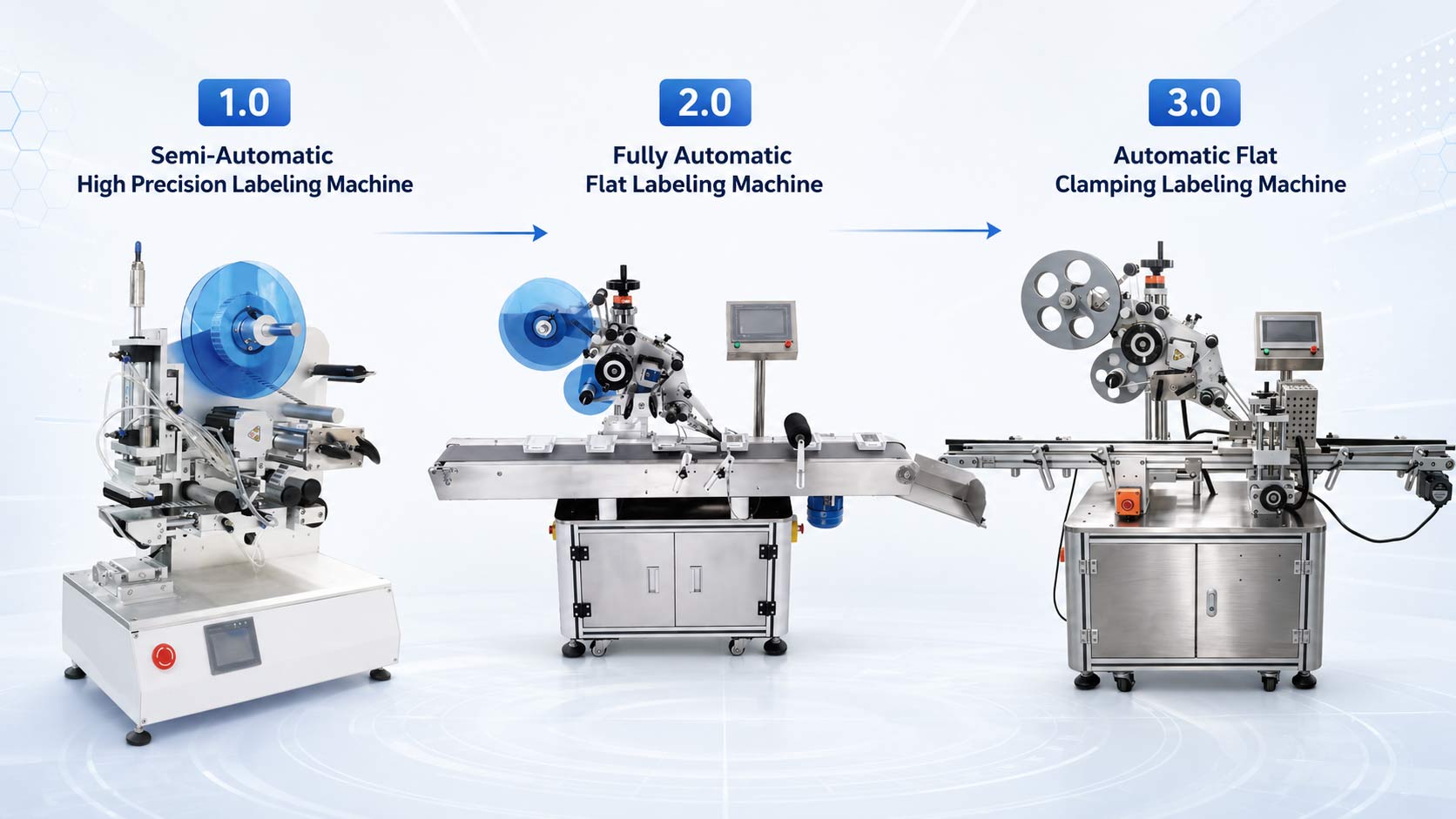

The Evolution of Labeling Technology

Business Results for Customers

This upgrade delivered measurable improvements:

Better Product Appearance

Perfectly centered labels improve packaging quality and make products look more premium on the shelf.

Reduced Labor Cost

By eliminating repeated manual correction:

From 2–3 operators → 1 operator

Lower Label Waste

Label consumption reduced by approximately 20%

Improved Production Quality

Defective labeling rate:

Before: 15–20%
After upgrade: 0%

Conclusion

For manufacturers requiring consistent, high-quality labeling on round caps and flat packaging, precision positioning is the key.

The Automatic Clamping Labeling Machine provides a practical solution by combining:

✔ Stable product positioning
✔ Precise labeling control
✔ High-speed automation
✔ Flexible application capability

A small mechanical improvement — the clamping mechanism — can create a significant upgrade in production efficiency and product quality.
