WINNEO Pad Printing Pad

Features of this product:

Precise transfer printing

The surface is fine, which can accurately absorb ink and completely transfer it to the workpiece, ensuring clear patterns.

Wide adaptability

Can be customized into different shapes and sizes, suitable for curved and special-shaped workpieces, meeting various printing needs.

Anti-static rubber head optional

Low surface resistance, reducing dust adsorption and avoiding pattern defects caused by static electricity during printing.

Solvent corrosion resistance

Can withstand various ink solvents, not easy to swell or harden, adapting to complex printing environments.

Get A Free Quote

Talk With Expert

ürün kategorileri

yeni ürünler

Ürün Detayları

WINNEO Pad Printing Pad

WINNEO Pad Printing Pad Features Highlights

What are the advantages of WINNEO pad printing pad?

①Precise transfer printing:The surface is fine, which can accurately absorb ink and completely transfer it to the workpiece, ensuring clear patterns.

②Wide adaptability:Can be customized into different shapes and sizes, suitable for curved and special-shaped workpieces, meeting various printing needs.

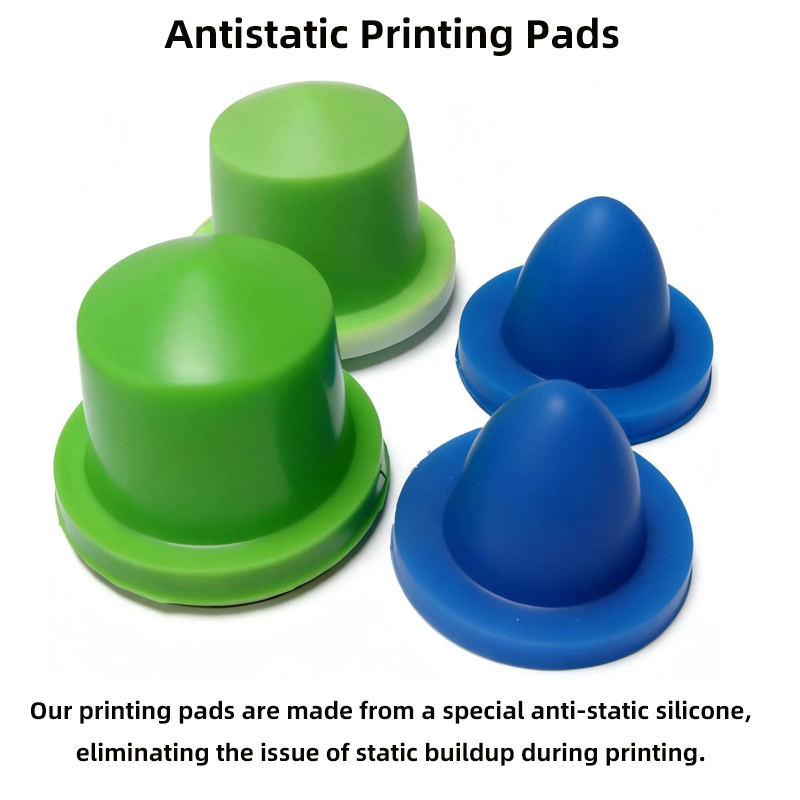

③Anti-static rubber head optional:Low surface resistance, reducing dust adsorption and avoiding pattern defects caused by static electricity during printing.

④Solvent corrosion resistance:Can withstand various ink solvents, not easy to swell or harden, adapting to complex printing environments.

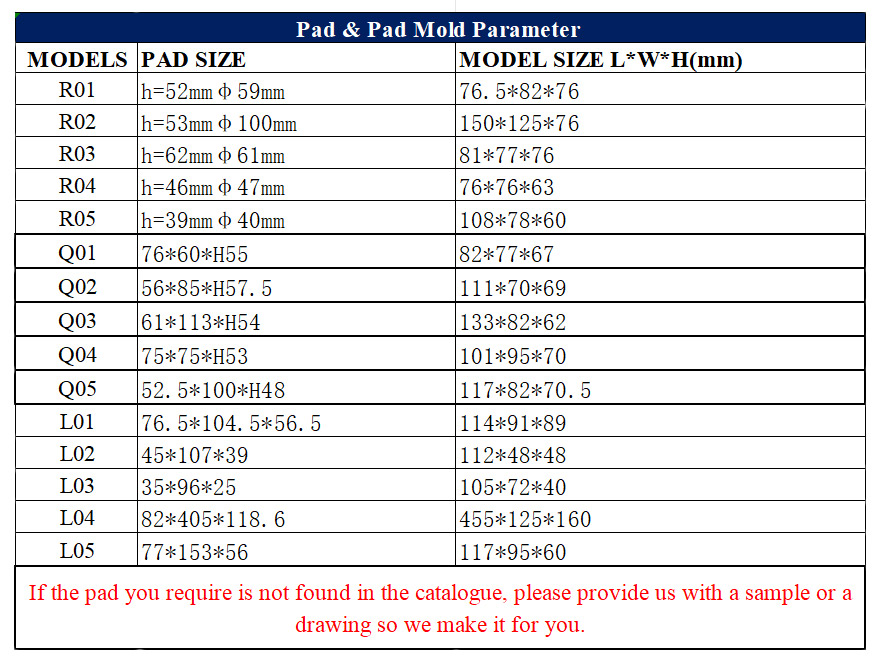

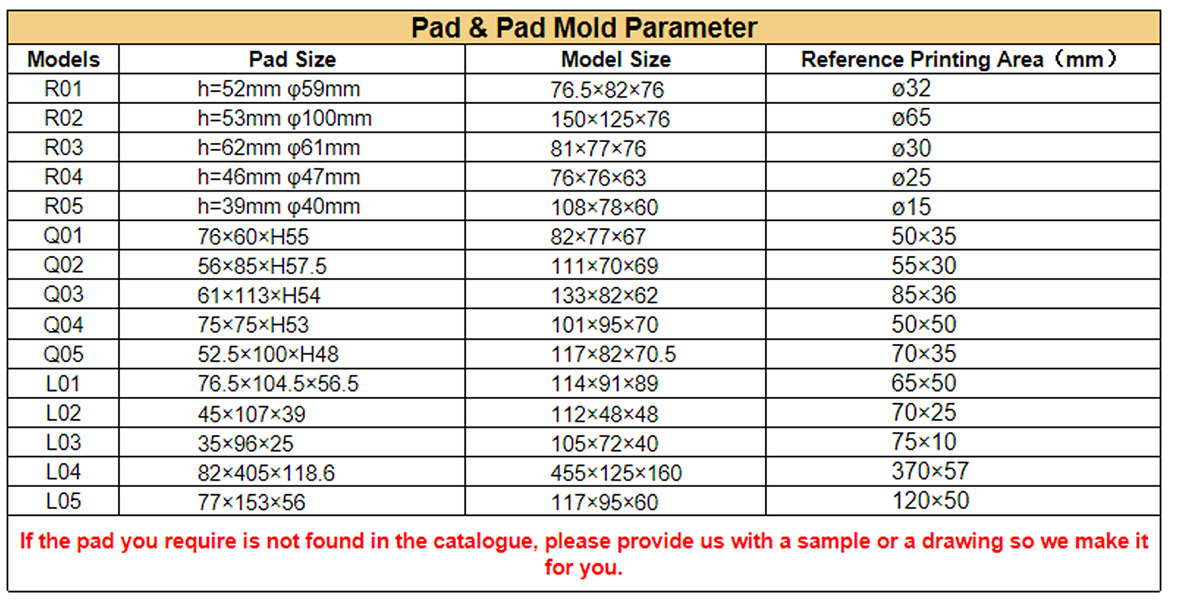

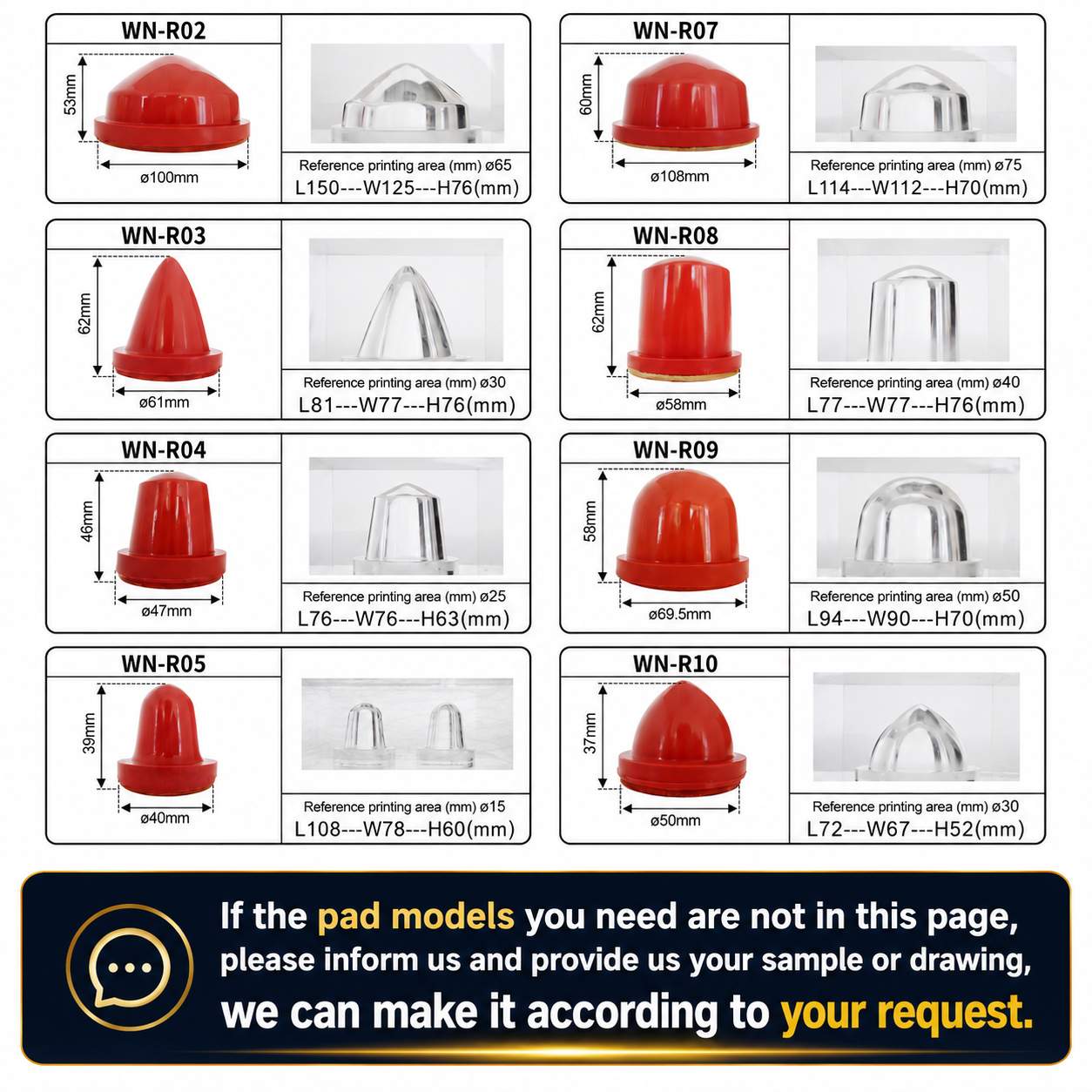

WINNEO Pad Printing Pad Parameter

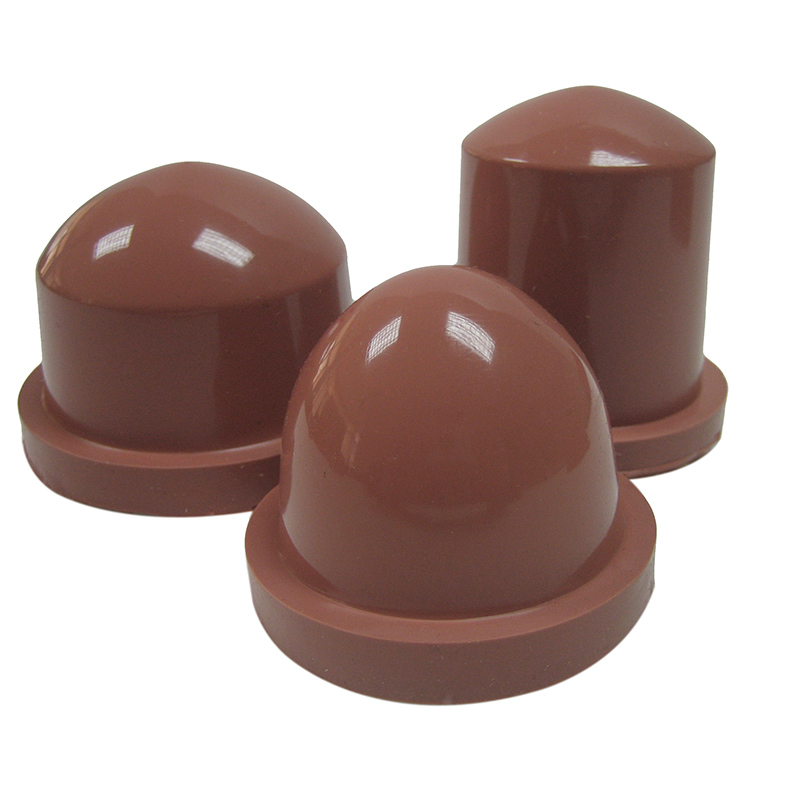

Product details display

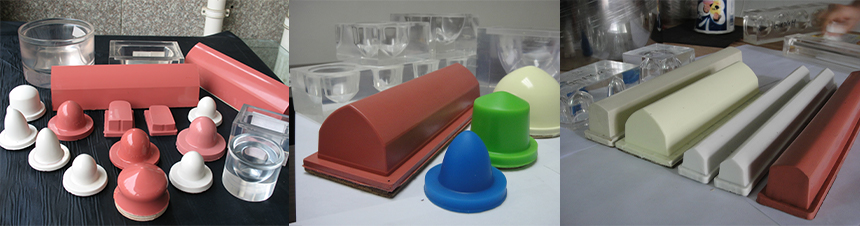

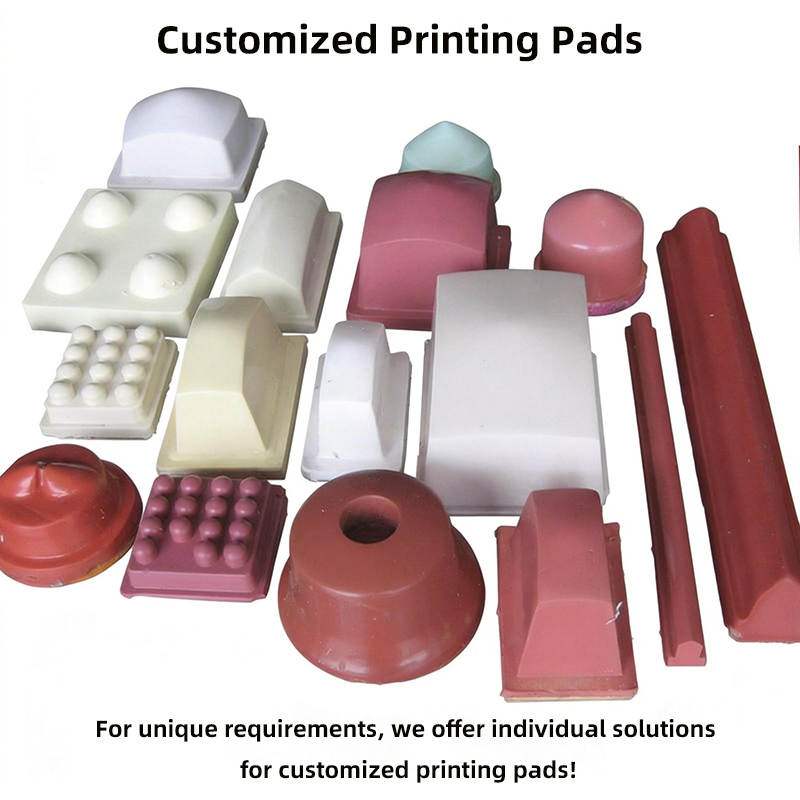

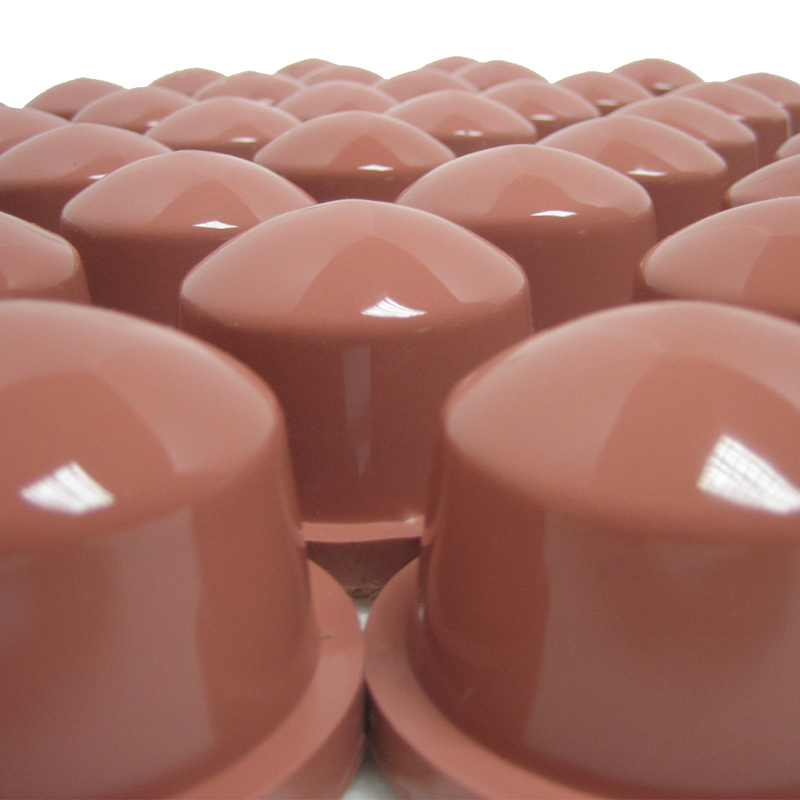

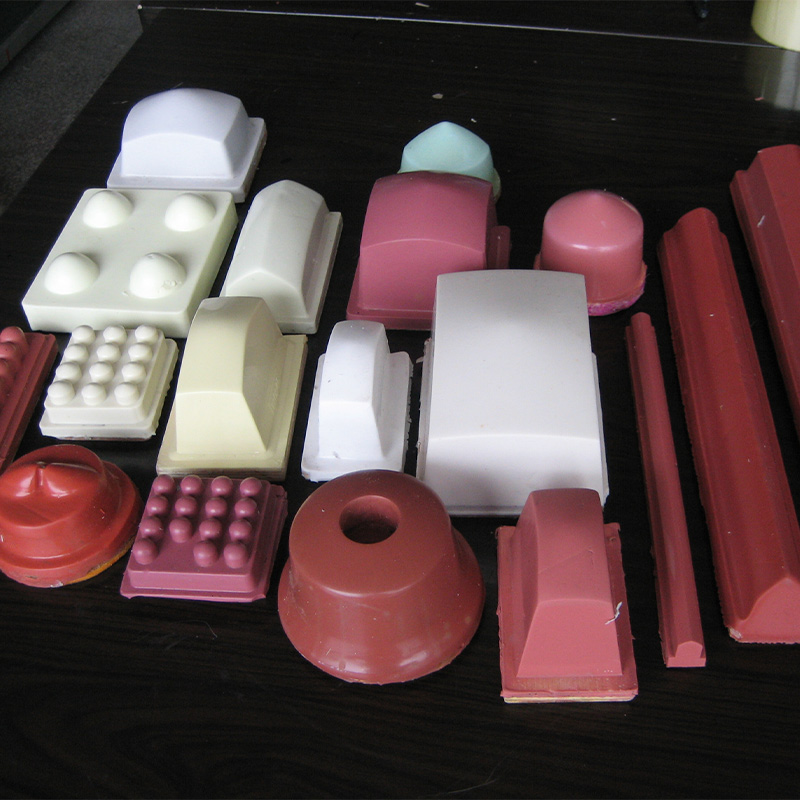

Various shapes of rubber tips can be customized.

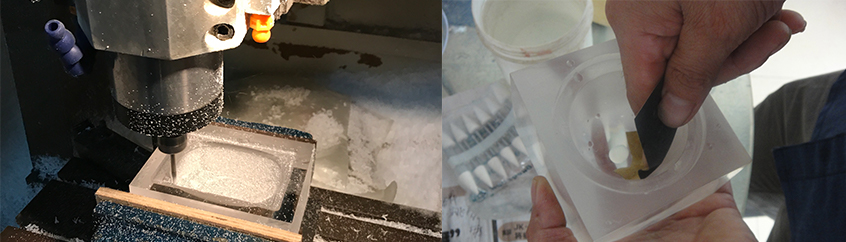

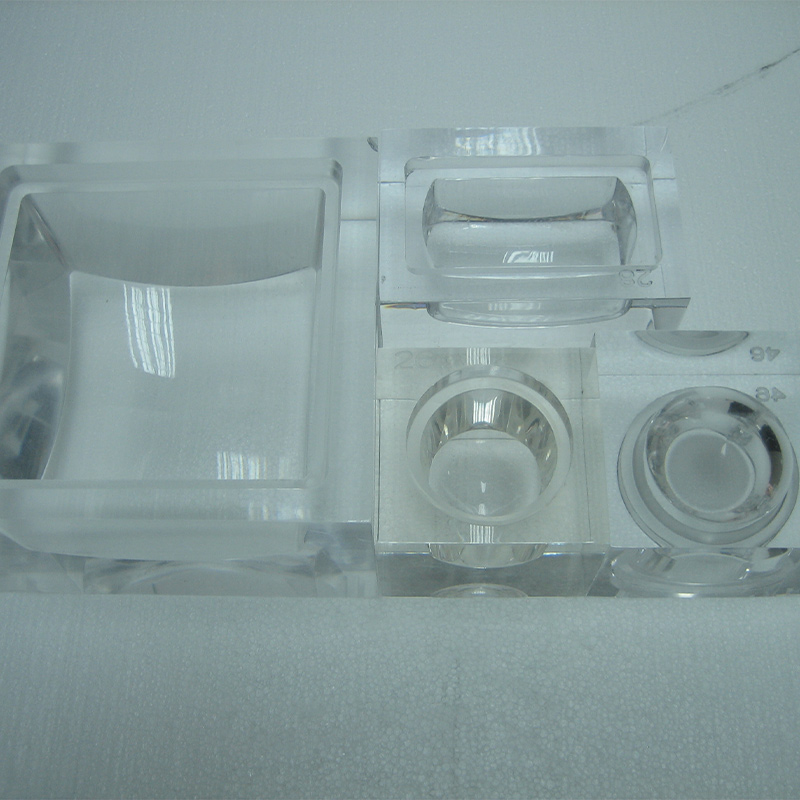

Pad printing pad mold making.

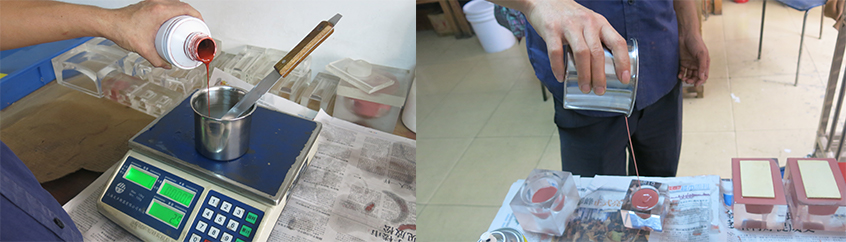

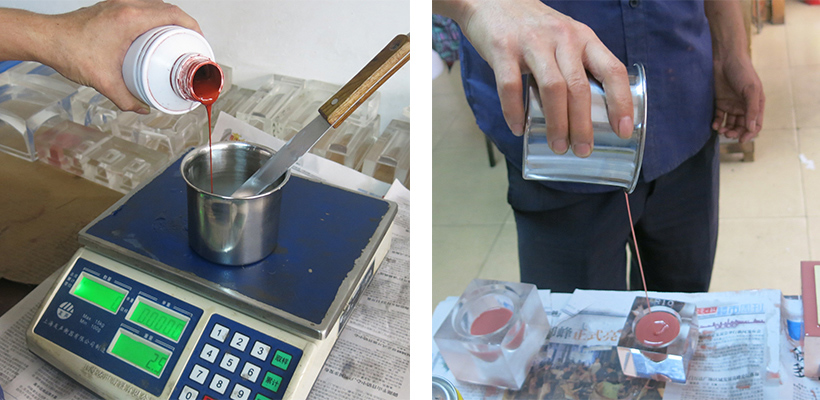

Pad printing pad making.

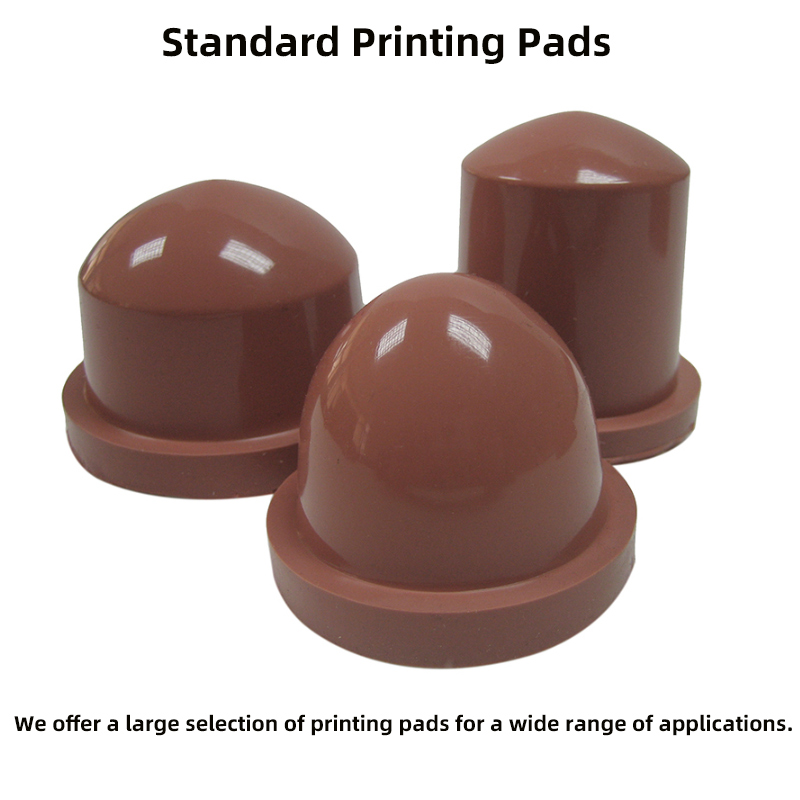

WINNEO Standard

Customers' quality requirements for products

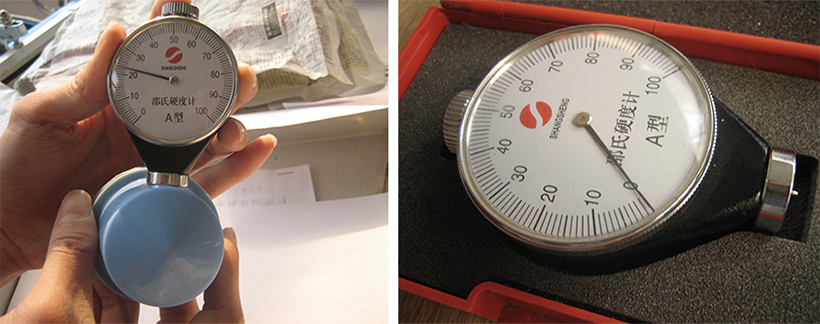

1.Precise elasticity and resilience: It needs to have a hardness suitable for the printing scenario. It can not only fit closely to the surface of the substrate to achieve uniform ink transfer, but also rebound quickly to avoid pattern deformation, which is the basis for ensuring printing clarity.

2.High-precision dimensions and appearance: The shape error must be controlled within ±1mm, and the surface must be smooth without bubbles, cracks or burrs, which directly affects the accuracy of pattern alignment and the integrity of the substrate surface.

3.Strong ink and solvent resistance: After contact with various inks and cleaning solvents, there should be no swelling, hardening or dissolution, which is the key to ensuring service life.

4.High wear resistance and durability: Under regular printing frequency, it needs to be used stably for more than 50,000 times to reduce the frequency of replacement and lower production costs.

5.Consistency of batch performance: The hardness, elasticity, size and other indicators of products from different batches must be uniform to avoid frequent adjustments of production processes due to parameter fluctuations and ensure stable printing quality.

QC System

100% Strict Quality Check

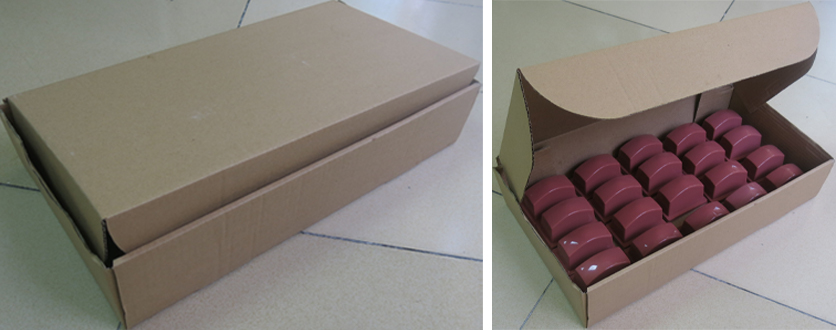

Safety Package

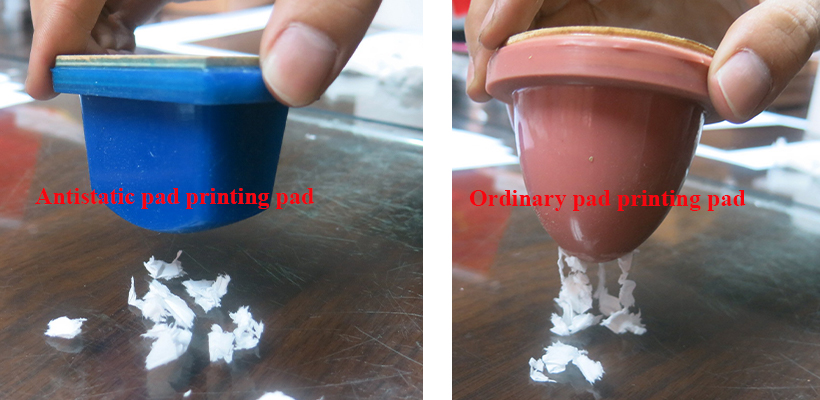

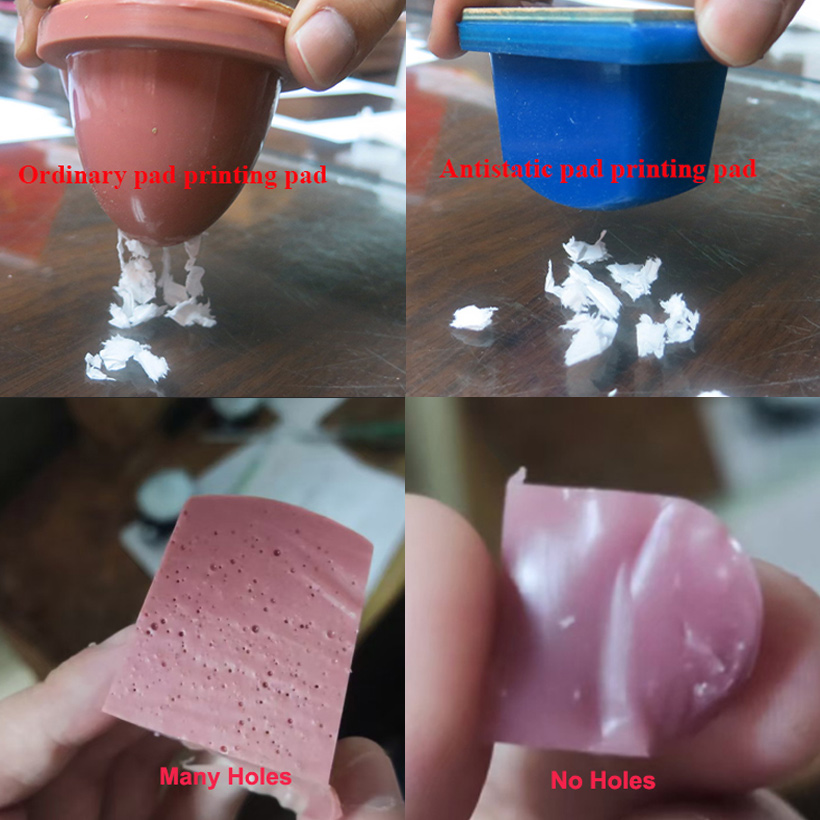

Comparison between antistatic pad and ordinary pad

Customers Recommend

WINNEO's pad printing pad is highly praised by customers.

FAQ

1. Why is the pad not durable?
Impurities in materials, excessive silicone oil (disrupting molecular structure), mismatched pad size vs. pattern, or incompatible inks (e.g., two-component types) cause premature wear.

2. Why are printed patterns unclear or incomplete?
Mismatched hardness (too hard for fine patterns), high moisture in ink, insufficient steel plate etching depth, or worn/deformed pads affect transfer.

3. How to fix ink not adhering to the pad or transferring to the substrate?
Not adhering to pad: Use softer pads for small patterns; clean new pads with alcohol to remove mold release.
Not transferring: Clean substrate with thinner; add slow-drying agent to ink.

4. What causes bubbles/sandholes or jagged edges on the pad?

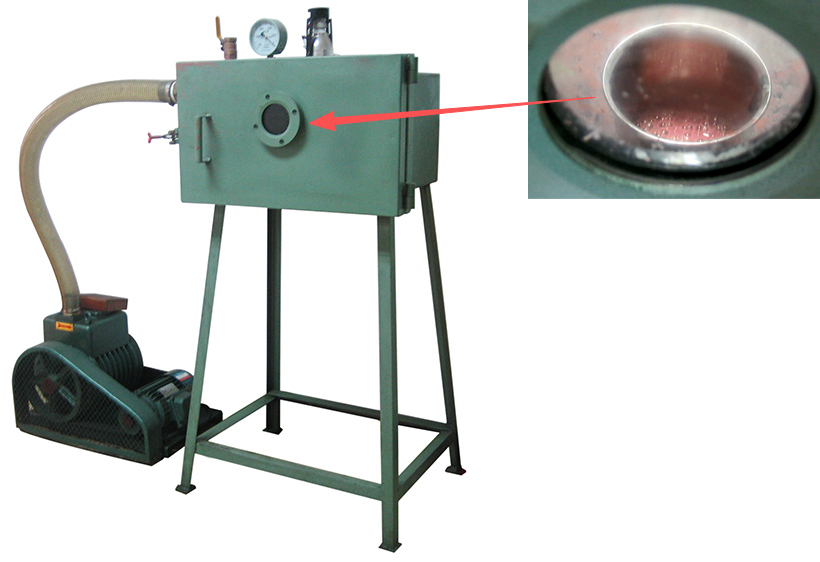

Bubbles: Inadequate vacuum during production or poor pad shape (e.g., flat design). - Jagged edges: High ink viscosity, rapid drying, or worn/soiled pad surfaces.

5. How to maintain and extend pad life?
Clean with dedicated solvent after use; store sealed/away from high temps/ozone. - Inspect every 5,000 prints; avoid sharp tools or over-pressurization.
